Nitride Screw Barrels Manufacturers

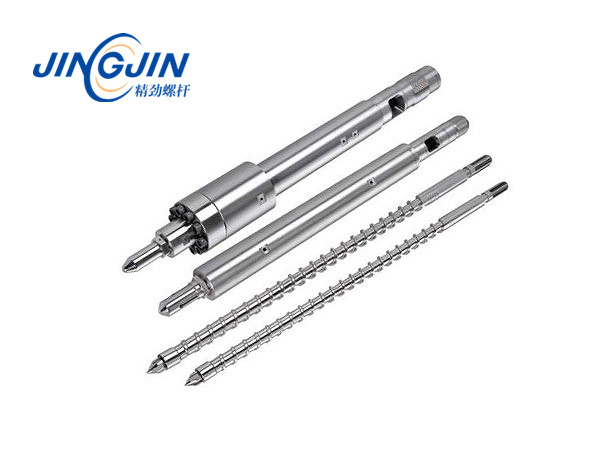

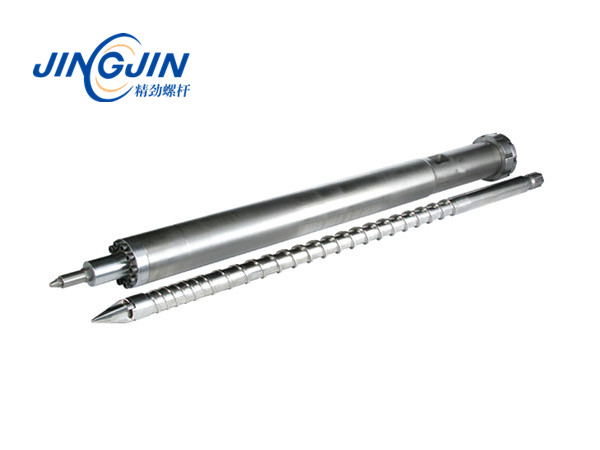

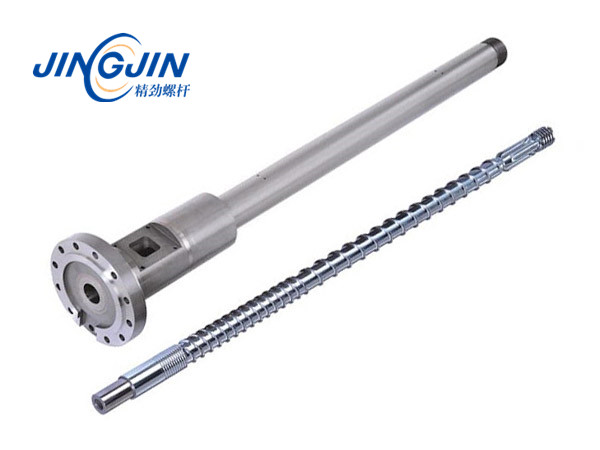

Nitride Screw Barrel

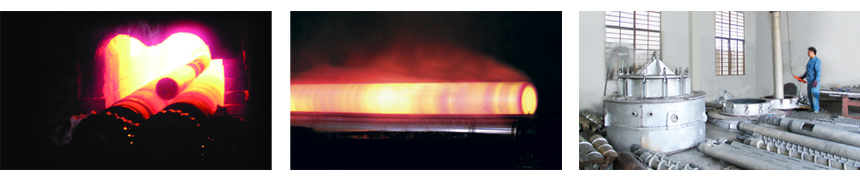

Material selection of high quality steel (38CrMOALA) or chromium-molybdenum alloy steel black cross (SACM645) after quenching and tempering, shaping, forming, grinding, or spray the surface nitride alloy (bimetal), polishing process is refined, with high wear resistance, anti-corrosion advantages.

Technical Specifications:
Production use: Injection molding machinery / Bakelite machinery / injection molding machinery / Bakelite machinery / extrusion machinery / blowing machinery / blown film machinery / granulator machinery / extrusion machinery / pipe machinery / sheet machinery / wire and cable machinery
Effective length: 12000mm
Nitriding depth: 0.4mm-0.7mm
Nitriding hardness: HRC55 ° -58 °
Straightness: 0.015mm-1000mm
Scope: ordinary plastic, PP, PC, PE, ABS, AS, PS, PVC, PMMA, etc.
